CCTV Surveillance Systems Products
Superior Speed Dome - Day & Night
(Outdoor Camera)
The current state-of-the-art, SperiorSpeedDome Day/Night utilizes a 27x optical zoom combined with a10x digital zoom, providing a 270x total zoom. Digital signal processing (DSP) provides enhanced clarity, color, and detail in well-lit or low light applications.
SALIENT FEATURES
- 1/4 inch Sony Super HAD CCD Camera
- 27x optical zoom with 10x digital magnifier (270x total zoom )
- Accepts select competitors' protocols (see your sales representatives for the details)
- Open shutter and IR cut filter to capture images in very low light
- Continuous auto focus and one shot focus
- Zoom adjusted programming
- Supports RS-485 & RS-422 protocols
- Support 2400 bps, 4800 bps, 9600 bps of baud rates.
- Dome status display, Up to six privacy zones
- Programmable presets, group-tour, auto-tour, trace ptz (pattern), 128 presets
- Alarm inputs and output, Alarm resume time programmable
- Automatic home position, Automatic home position time programmable
- Auto flips and Automatic Gain Control, line-lock and white balance (user-selectable on/off)
- Auto flips and Automatic Gain Control, line-lock and white balance (user-selectable on/off)
- Meets IP66 specifications
- Vandal resistant bubble and aluminum steel construction
Technical Specifications
| Design : | Aspherical |
| Aperture : | F1.5 ~ 3.8 |
| 3.25 mm : | 59.5° (H) x 45.6° (V) |
| 88 mm : | 2.4° (H) x 1.8° (V) |
| Focal Length: | 3.25 to 88.0 mm |
Superior Speed Dome - Day & Night
(IN door Camera)
The current state-of-the-art, Superior Speed Dome Day/Night utilizes a 27x optical zoom combined with a 10x digital zoom, providing a 270x total zoom. Digital signal processing (DSP) provides enhanced clarity, color, and detail in well lit or low light applications.
Salient Features
- Advanced Sony DSP HAD CCD camera
- 27x optical zoom with 10x digital magnifier (270x total zoom)
- Accepts select competitors' protocols (see your sales representatives for the details)
- Open shutter and IR cut filter to capture images in very low light
- Continuous auto focus and one shot focus
- Zoom adjusted programming
- Supports RS-485 & RS-422 protocols
- Support 2400 bps, 4800 bps, 9600 bps of baud rates.
- Dome status display, Up to six privacy zones
- Programmable presets, group-tour, auto-tour, trace ptz (pattern),128 presets
- Alarm inputs and output, Alarm resume time programmable
- Automatic home position, Automatic home position time programmable
- Auto flips and Automatic Gain Control, line-lock and white balance (user-selectable on/off)
- The camera's 27x optical zoom is combined with 10x digital magnifier, providing a total of 270 xs zo
- The Superior Speed Dome DSC-270SI Day/Night's can clearly distinguish scenes and colors in lighting
- In addition to our RS-485 and RS-422 codes, and the dome can be controlled via other select manufact
- Up to six different sized privacy zones can be programmed to prevent users from viewing sensitive ar
- The dome indicates how many load voltages have input, protocol, what kind of model and software vers
- Users can adjust the white balance manually or have the camera set it automatically. White balance i
- Users can set the Automatic Gain Control (AGC) on/off and manual set the gain. AGC helps compensate
- Focus Preference provides continuous auto focus with one-shot and manual override.
- The dome supports to one ptz trace (pattern). Preprogrammed default spiral pan pattern.
- The dome supports up to 128 Presets when used with a keyboard controller, DCK-255.
- Zoom Adjusted Program automatically adjusts pan and tilt speeds in proportion to zoom position, even
- Alarms can be processed internally by the dome, externally by the controller, or by both the dome an
- Alarm resume time set can be programmed a dome reverts to a previous operating function after settin
- "Home position" is the position that a dome return to after it remains inactive for a specificperiod
- The wide dynamic range feature allows for better viewing of scenes with contrasting light levels.
- Users can set line-lock on or off. Line-Lock is to help prevent vertical rolling in multi-camera app
- Vertical sync phase of power when line-lock enabled, making it ideal for single and multi-phase powe
- Surge protection is provided for video, and power connections.
- Protection program is provided for irregular input voltage. This ideal program makes dome to be shut
- Pixim 1/3
- IHigh Resolution (up to 540HTV Equivalent)
- Industry-best WDR Performance
- Built-in Vari-Focal DC Auto Iris Lens 2.9mm~10mm
- Day & Night by Digital Change, 4 Privacy Zone Control, Motion Detecton
- 3-Axis Rotation
- Built-in On Screen Display
- Waterproof ( IP65 )
TECHNICAL SPECIFICATION
| Image Sensor: | 1/3 |
| Effective Pixels: | 720(h) x 540 (v) |
| Horizontal Resolution: | More than 540 TV Lines |
| Scanning Frequency: | 15.734KHz(H), 59.944(V) |
| Video Io Select: | NTSC / PAL |
| Min. Illumination: | Color : 0.4 Lux ( F:1.2),(Sense-up 32x : 0.08Lux) |
| Day & Night: | D&N Function by Digital Change : Auto/Off |
| White Balance: | Auto / AWB / Manual |
| DSS: | Off / 2 fields ~ 32 fields |
| DNR: | Auto / High / Low |
| Zoom: | Digital 4X , Pan/Tilt |
| AGC: | Low / Auto / High / Off |
| Wide Dynamic Range: | Max 120dB /17 -bit |
| Camera ID: | On / Off |
| S/N Ratio: | More than 50dB |
| Video Output: | Composite video output 75 ohm terminated |
| Lens: | 2.9 ~ 10mm Vari-focal DC Iris Lens |
| Sync. System: | Internal |
| Operating Humidity: | 30 % ~ 90 % RH |
| Operating Temp.: | - 10 to 50 |
| Dimension: | 100(Bubble) x 103(H) |
| Weight: | About 800g |
| Power Consumption: | 230mA |
| Power Supply: | DC 12 V(10.2V~14.5 V) |
Dome Type - COLOR CAMERA
vandal proof
SALIENT FEATURES
- Pixim 1/3
- IHigh Resolution (up to 540HTV Equivalent)
- Industry-best WDR Performance
- Built-in Vari-Focal DC Auto Iris Lens 2.9mm~10mm
- Day & Night by Digital Change, 4 Privacy Zone Control, Motion Detecton
- 3-Axis Rotation
- Built-in On Screen Display
- Waterproof ( IP65 )
TECHNICAL SPECIFICATION
| Image Sensor: | 1/3 |
| Effective Pixels: | 720(h) x 540 (v) |
| Horizontal Resolution: | More than 540 TV Lines |
| Scanning Frequency: | 15.734KHz(H), 59.944(V) |
| Video Io Select: | NTSC / PAL |
| Min. Illumination: | Color : 0.4 Lux ( F:1.2),(Sense-up 32x : 0.08Lux) |
| Day & Night: | D&N Function by Digital Change : Auto/Off |
| White Balance: | Auto / AWB / Manual |
| DSS: | Off / 2 fields ~ 32 fields |
| DNR: | Auto / High / Low |
| Zoom: | Digital 4X , Pan/Tilt |
| AGC: | Low / Auto / High / Off |
| Wide Dynamic Range: | Max 120dB /17 -bit |
| Camera ID: | On / Off |
| S/N Ratio: | More than 50dB |
| Video Output: | Composite video output 75 ohm terminated |
| Lens: | 2.9 ~ 10mm Vari-focal DC Iris Lens |
| Sync. System: | Internal |
| Operating Humidity: | 30 % ~ 90 % RH |
| Operating Temp.: | - 10 to 50 |
| Dimension: | 100(Bubble) x 103(H) |
| Weight: | About 800g |
| Power Consumption: | 230mA |
| Power Supply: | DC 12 V(10.2V~14.5 V) |
Dome Type - COLOR CAMERA
CS MOUNT
SALIENT FEATURES
- Pixim 1/3
- High Resolution (up to 540HTV Equivalent)
- Industry-best WDR Performance
- Day & Night by Digital Change, 4 Privacy Zone Control, Motion Detecton
- On Screen Display Built-in
- C / CS Moun
| Image Sensor: | 1/3 |
| Effective Pixels: | 720(h) x 540 (v) |
| Horizontal Resolution: | More than 540 TV Lines |
| Scanning Frequency: | 15.734KHz(H), 59.944(V) |
| Video Io Select: | NTSC / PAL |
| Min. Illumination: | Color : 0.4 Lux (F:1.2),(Sense-up 32x : 0.08Lux) |
| Day & Night: | D&N Function by Digital Change : Auto/Off |
| White Balance: | Auto/AWB / Manual |
| DSS: | Off / 2 fields ~ 32 fields |
| DNR: | Auto / High / Low |
| Zoom: | Digital 4X , Pan/Tilt |
| AGC: | Low / Auto / High / Off |
| Wide Dynamic Range: | Max 120dB /17 -bit |
| Camera ID: | On / Off |
| S/N Ratio: | More than 50dB |
| Video Output: | Composite video output 75 ohm terminated |
| Mount: | C / CS Mount |
| Sync. System: | Internal |
| Operating Humidity: | 30 % ~ 90 % RH |
| Operating Temp: | -10 to 50 |
| Dimension: | 61(W) 55(H) 104(D)mm |
| Weight: | About 800g |
| Power Consumption: | 230mA |
| Power Supply: | DC 12 V(10.2V~14.5 V) |

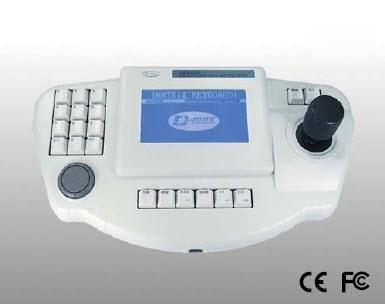

3-Axial Joystick Keyboard
(PTZ External keyboard)
SALIENT FEATURES
- Telemetry controller for the remote control of CCTV Devices : Speed dome, receiver Matrix, DVR
- To select menu on a touch screen and scan DVR menu with a jog shuttle easily
- Controls up to maximum 512 CCTV receivers
- Preset control: 255 positions memory set for each camera
- 3-axis Joystick control to Pan/Tilt/Zoom movement
- Can be connected with up to 8 sub-keyboards
| Control: | Pan/Tilt, Zoom, Power, Auto Pan, AUX Control(2), Preset |
| Connecting Unit: | CCTV Receiver, PTZ Cameras, DVR, Matrix |
| Communication Method: | RS-485 (422) |
| Communication Speed: | RS485 - 9600bps, N, 8, 1 |
| Alarm control: | Max 512 Channels |
| Connector: | Modular cable(RJ-45) connection with a junction box Power supplied via junction |
| Package: | Junction Box, 10M cable (modular jacks both ends) Operating Distance: Max. 1.2km |
| Power: | DC12V, 1A |
| Power Consumption: | 400mA |
| Operating Condition: | 0 ~ +40 |
| Weight: | About 3.5Kg |
| Dimensions: | 354.4(W) x 89.1(H) x 199.8(D)mm |
.jpg)

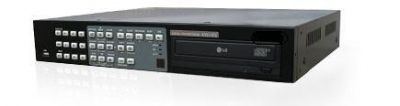

Digital Video Recorder (DVR)

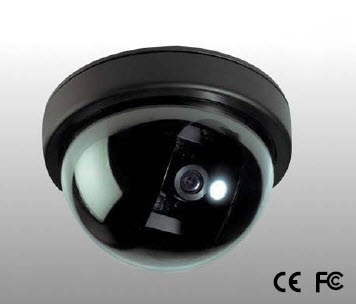

Dome Type - DCC-500D
FIXED LENS
SALIENT FEATURES
- SONY 1/3
- High Resolution of 530TV Lines
- Day & Night Capability with High Sensitivity of 0.002 Lux
- OSD Function & Excellent Auto Tracking White Balance
- Hard Disk Saving with Digital Noise Reduction Technology
| Image Sensor: | 1/3 |
| Total Pixels: | 811(H)X508(V) |
| Effective Pixels: | 768(H)X494(V) |
| Resolution: | More than 530 TV lines |
| Scanning Frequency: | 15.734KHz(H), 60(V) |
| Shutter Speed: | 1/60~1/100,000 sec |
| Min. Illumination: | Color : 0.3 Lux, |
| B/W: | 0.002 Lux (Sense-up : Auto(2x~128x) |
| Day & Night: | D&N Function by Digital Change : Auto/Off |
| White Balance: | ATW / AWC / MANUAL |
| BLC: | Low / Middle / High / Off |
| AGC: | Low / Middle / High / Off |
| DNR: | Auto / Off |
| DSS: | AGC Off / 2 fields ~ 32 fields |
| Privacy Zone & Motion Detection: | 4 Programmable Zone |
| Sharpness: | On(level : 0 ~ 31) / Off |
| Camera ID: | On / Off |
| S/N Ratio: | More than 50dB |
| Video Output: | Composite video output 75 ohm terminated |
| Lens: | 3.7mm |
| Sync. System: | Internal |
| Operating Humidity: | 30 % ~ 90 % RH |
| Operating Temp.: | - 100C to 500C |
| Dimension: | 100 x 84(H) |
| Weight: | About 300g |
| Power Consumption: | 160mA |
| Power Supply: | DC 12 V(10.2V~14.5 V) |

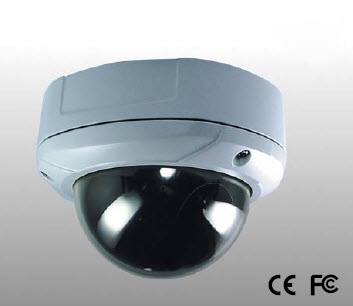

Dome Type - DCC-500DV
WEATHER PROOF
4~9mm Vari-focal Lens, 530 TV Lines, Day & Night SALIENT FEATURES
- SONY 1/3
- Vari-Focal DC Auto Iris Lens Built-in 4mm~9mm
- Super Low Light Sensitivity Color 0.3 Lux, B/W O.002 Lux
- On Screen Display Built-in / Motion Detection Built-in
- 3-Axis Rotation
- Waterproof ( IP65 )
- Built-in On Screen Display
- Waterproof ( IP65 )
| Image Sensor: | 1/3 |
| Total Pixels: | 811(H)X508(V) |
| Effective Pixels: | 768(H)X494(V) |
| Resolution: | More than 530 TV lines |
| Scanning Frequency: | 15.734KHz(H), 60(V) |
| Shutter Speed: | 1/60~1/100,000 sec |
| Min. Illumination: | Color : 0.3 Lux, |
| B/W : | 0.002 Lux (Sense-up : Auto(2x~128x) |
| Day & Night: | D&N Function by Digital Change : Auto/Off |
| White Balance: | ATW / AWC / MANUAL |
| BLC : | Low / Middle / High / Off |
| AGC: | Low / Middle / High / Off |
| DNR: | Auto / Off |
| DSS: | AGC Off / 2 fields ~ 32 fields |
| Privacy Zone & Motion Detection: | 4 Programmable Zone |
| Sharpness: | On(level : 0 ~ 31) / Off |
| Camera ID: | On / Off |
| S/N Ratio: | More than 50dB |
| Video Output: | Composite video output 75 ohm terminated |
| Lens: | DC Auto Iris Lens 4 ~ 9 mm (F:1.6) |
| Sync. System: | Internal |
| Operating Humidity: | 30 % ~ 90 % RH |
| Operating Temp.: | - 100C to 500C |
| Dimension: | 100(Bubble) x 103(H) |
| Weight: | About 800g |
| Power Consumption: | 180mA |
| Power Supply: | DC 12 V(10.2V~14.5 V) |
