USB Wireless Camera Products
USB Wireless Camera
Features
- USB 2.0 output to PC and AV output to TV/Monitor
- Bundle with security software
- Image capture, and high speed MPEG4 real-time recording
- Support MSN Messenger and Skype
- Built-in microphone for audio monitoring
- 4 channels optional to avoid possible interference
- Night vision (Effective range: 3m)
- Up to 100m (330ft.) transmission range in open space
Specifications
| Item | Value | |
| GENERAL | Transmission Frequency | ISM 2,400~2,483 MHz |
| Transmission Power | 10mW/CE; 2mW/FCC | |
| Operating Frequency | 2414MHz;2432MHz;2450MHz;2468MHz | |
| Unobstructed Effective Range | 100m(Min.) | |
| Modulation Mode | FM | |
| Operating Temperature | -10 ~ +50(Degree C) / +14~ +122(Degree F) | |
| Storage Temperature | -20 ~ +60(Degree C) / -4 ~ +140(Degree F) | |
| Operating Humidity | <=85%RH | |
| CAMERA | Imaging Sensor Type | CMOS |
| Picture Total Pixels | PAL:628×582 Pixels; NTSC: 510×492 Pixels |
|
| Horizontal Resolution | 380 TV Lines | |
| View Angle | PAL:60°; NTSC:40° | |
| Minimum Illumination | 0Lux | |
| Night Vision Range | 3m | |
| BandWidth | 18M | |
| Consumption Current | 110mA (Max.) | |
| Power Supply | DC +8V | |
| Dimensions(W×D×H) | 46*42*57 mm | |
| Weight | 89g | |
| RECEIVER | Antenna | 50 ohm SMA |
| Receiving Sensitivity | <=-85dBm | |
| Intermediate Frequency | 480MHz | |
| Video Output Signal Level | 1.1Vpp±0.2Vpp@75 ohm, S/N >38dM | |
| Audio Output Signal Level | 3.0Vpp±1Vpp@600 ohm | |
| Consumption Current | 190mA(Max.) | |
| Power Supply | DC +5V | |
| Dimensions(W×D×H) | 68*78*16 mm | |
| Weight | 119 g |

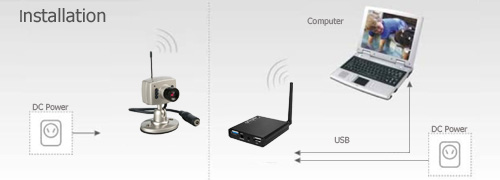

Installation Procedure

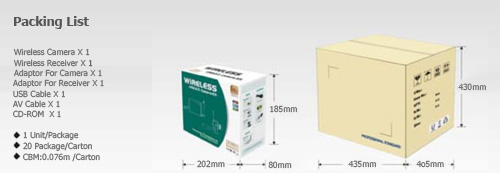

Packing List
